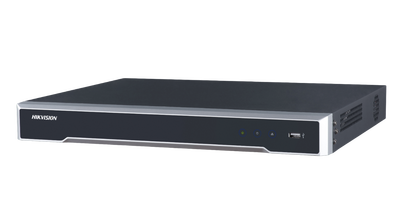

8 Kanal H.265+ 2xSata 8MP 4K NVR
8 Kanal H.265+ 2xSata 8MP 4K NVR
|
Video/ Audio İnput |
IP video input |
8 Kanal |
|
Incoming bandwidth |
80 Mbps |
|
|
Outgoing bandwidth |
160 Mbps |
|
|
Video/Audio Output |
HDMI output resolution |
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, |
|
1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz |
||
|
VGA output resolution |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz |
|
|
Audio output |
1 Kanal, RCA (Linear, 1 KΩ) |
|
|
Decoding |
Decoding format |
H.265/H.265+/H.264/H.264+/MPEG4 |
|
Recording resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
|
Synchronous playback |
8 Kanal |
|
|
Capability |
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) |
|
|
Network Management |
Network Protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS,iSCSI, UPnP™, HTTPS |
|
Hard Disk |
SATA |
2 SATA interfaces |
|
Capacity |
Up to 6 TB capacity for each HDD |
|
|
External İnterface |
Two-way audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
Network interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
|
USB interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
|
Alarm in/out |
4/1 |
|
|
General |
Power supply |
12 VDC |
|
Power |
≤ 40 W |
|
|
Consumption (without hard disk) |
≤15 W |
|
|
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
|
Working humidity |
10 to 90 % |
|
|
Dimensions (W × D × H) |
385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
|
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb) |
