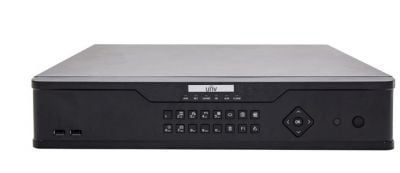

64 Kanal Ultra H265 8xSata (80TB) 2xHDMI RAID, HOT SWAP 4K NVR
64 Kanal Ultra H265 8xSata (80TB) 2xHDMI RAID, HOT SWAP 4K NVR
|
Model |
NVR308-32R-B |
NVR308-64R-B |
|
Video/Audio Input |
||
|
IP Video Input |
32 Kanal |
64 Kanal |
|
Two-way Audio Input |
1 Kanal, RCA |
|
|
Network |
||
|
Incoming Bandwidth |
320Mbps |
|
|
Outgoing Bandwidth |
320Mbps |
|
|
Remote Users |
128 |
|
|
Protocols |
SNMP,P2P, UPnP, NTP, DHCP, PPPoE |
|
|
Video/Audio Output |
||
|
HDMI/VGA Output |
HDMI1/VGA: |
|
|
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
||
|
HDMI2: |
||
|
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
||
|
CVBS Output |
1 Kanal, BNC |
|
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Audio Output |
1 Kanal, RCA |
|
|
Synchronous Playback |
16 Kanal |
|
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
|
|
Decoding |
||
|
Decoding format |
Ultra 265, H.265, H.264 |
|
|
Live view/ Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Capability |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
|
|
Hard Disk |
||
|
SATA |
8 SATA interfaces |
|
|
Capacity |
Up to 10TB for each HDD |
|
|
eSATA |
1 eSATA interface |
|
|
Disk Array |
||
|
Array Type |
RAID 0, 1, 5, 6, 10 |
|
|
External Interface |
||
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
|
Serial Interface |
1 x RS232, 1 x RS485 |
|
|
USB Interface |
Rear panel: 2 x USB2.0, 1 x USB3.0 |
|
|
Alarm In |
16 Kanal |
|
|
Alarm Out |
4 Kanal |
|
|
General |
||
|
Power Supply |
100 ~ 240 VAC |
|
|
Power Consumption: ≤ 20 W( without HDD ) |
||
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
|
|
Dimensions(W×D×H) |
442mm ×531mm ×86mm (17.4" × 20.9"×3.4") |
|
|
Weight ( without HDD ) |
≤ 5.13 Kg (11.31 lb ) |
|
