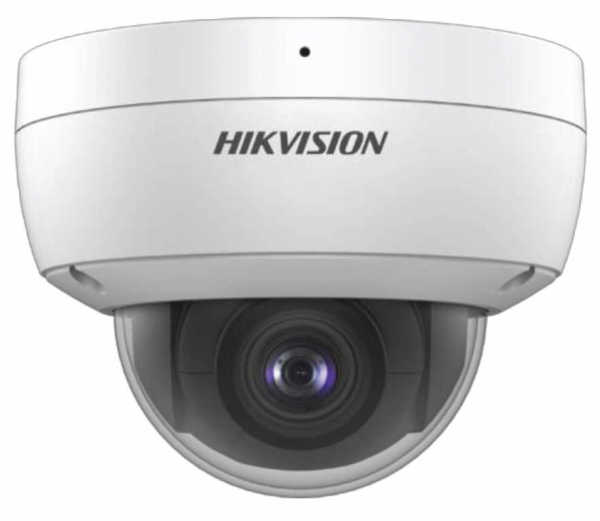

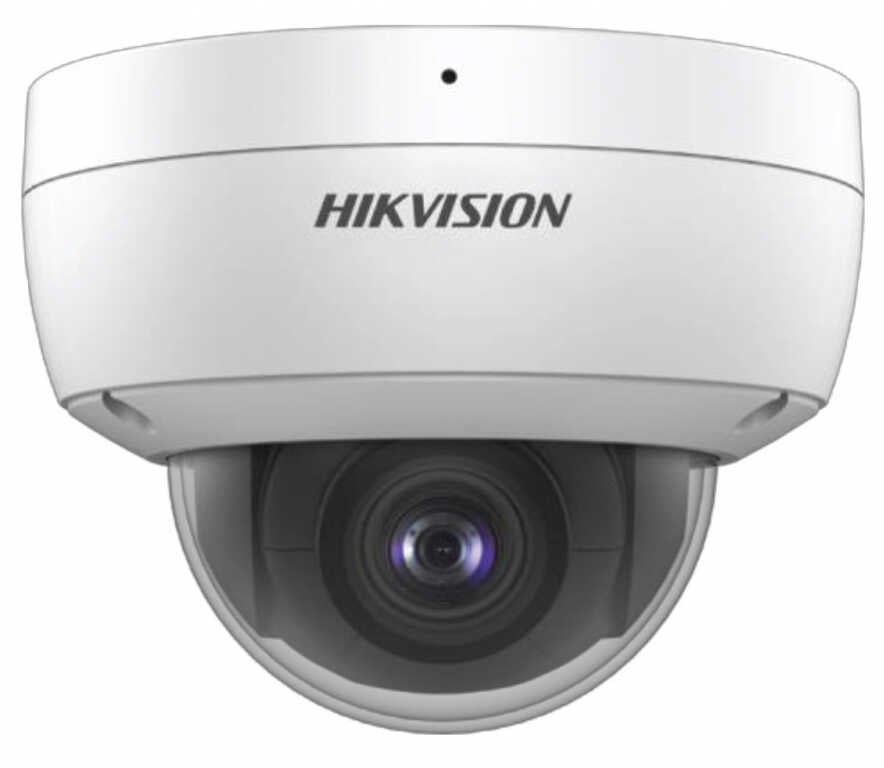

6.0MP 2.8mm Lens H.265+ Mikrofonlu 30Mt. IR Dome İP Kamera
6.0MP 2.8mm Lens H.265+ Mikrofonlu 30Mt. IR Dome İP Kamera
|
Camera |
|
|
Image Sensor |
1/2.9" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
Day & Night |
IR Cut Filter |
|
WDR |
120 dB |
|
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|
Lens |
|
|
Lens Type |
Fixed lens, 2.8/4/6 mm |
|
Aperture |
F2.0 |
|
FOV |
2.8 mm: horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120° |
|
4 mm: horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97° |
|
|
6 mm: horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75° |
|
|
Lens Mount |
M12 |
|
Illuminator |
|
|
IR Range |
Up to 30 m |
|
Wavelength |
850 nm |
|
Video |
|
|
Max. Resolution |
3072 × 2048 |
|
Main Stream |
50Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25fps (2560 × 1440, 1920 × |
|
1080, 1280 × 720) |
|
|
60Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × |
|
|
1080, 1280 × 720) |
|
|
Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
|
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
|
Third Stream |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
|
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
|
Video Compression |
Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
|
H.264 Type |
Main Profile/High Profile |
|
H.264+ |
Main stream supports |
|
H.265 Type |
Main Profile |
|
H.265+ |
Main stream supports |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding support |
|
* When the main stream resolution is 2944 × 1656 and above, max frame rate is 20 fps for all streams. |
|
|
Audio |
|
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
|
Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps- |
|
320Kbps(MP3) |
|
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Smart Feature-Set |
|
|
Smart Event |
Line crossing detection, intrusion detection and face detection |
|
Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
|
Linkage Method |
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email |
|
Trigger notification: HTTP, ISAPI, Email |
|
|
Region of Interest |
1 fixed region for main stream and sub-stream |
|
Image |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Setting |
Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
|
Day/Night Switch |
Day/Night/Auto/Schedule |
|
Network |
|
|
Network Storage |
microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|
API |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
|
Simultaneous Live View |
Up to 6 channels |
|
User/Host |
Up to 32 users, 3 levels: administrator, operator and user |
|
Client |
iVMS-4200, Hik-Connect, Hik-Central |
|
Web Browser |
Plug-in required live view: IE8+ |
|
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
|
|
Interface |
|
|
Communication Interface |
1 RJ45 100M self-adaptive Ethernet port |
|
Audio |
1 audio input (built-in microphone) |
|
On-board storage |
Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
|
General |
|
|
Web Client Language |
32 languages |
|
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|
|
General Function |
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e- mail, pixel counter, HTTP listening |
|
Reset |
Reset via reset button on camera body, web browser and client software |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
|
Power Consumption and Current |
12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W |
|
Material |
Camera body: metal, bubble: plastic |
|
Dimensions |
Camera: Φ121 × 92 mm (Φ4.8" × 3.6") |
|
With package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3") |
|
|
Weight |
Camera: Approx. 570 g (1.3 lb.) |
|
With package: Approx. 950 g (2.1 lb.) |
|
|
Approval |
|
|
EMC |
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, |
|
EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: |
|
|
2015, KN 35: 2015 |
|
|
Safety |
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am |
|
1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1 |
|
|
Chemistry |
2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
|
Protection |
Ingress protection: IK10 (IEC 62262:2002), IP66 (IEC 60529-2013) |
