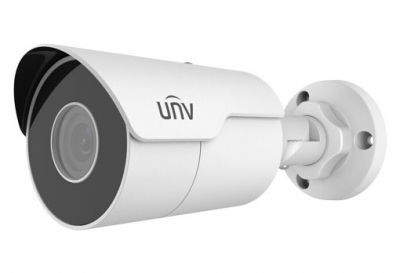

2.0MP 4.0mm Ultra H265 50Mt. IR Bullet İP Kamera

IPC2122LR5-UPF28M-F

IPC2122LR5-UPF40M-F

Camera

Sensor

1/2.7", 2.0 megapixel, progressive scan, CMOS

Lens

2.8mm@F1.6

4.0mm@F1.6

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

42

16.8

8.4

4.2

4.0

60

24

12

6

Angle of view (H)

112.7°

86.5°

Angle of View (V)

60.1°

44.1°

Angle of View (O)

146.5°

106.4°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.005Lux ( F1.6, AGC ON)
0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 50m (164ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

DWDR

Video

Video Compression

Ultra 265, H.265, H.264

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 4CIF (704*576), Max 30fps

Video Bit Rate

128 Kbps~6 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

NA

Dewarping

NA

HLC

Supported

BLC

Supported

Network

Protocols

IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP

Compatible Integration

ONVIF (Profile S, Profile T), API

Client

EZStation
EZView
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Interface

Network

10/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 6W

Dimensions (Ø x H)

191.3×72.6×70.9mm (7.5”×2.9”×2.8”)

Net Weight

0.5kg (1.1lb)

Material

Sun shield：plastic
Front cover：plastic
Body：metal
Bracket：metal
Bottom plate：metal

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

2KV

Ingress Protection

IP67
