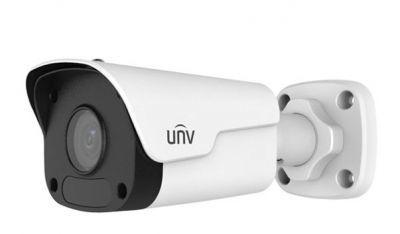

2.0MP 4.0mm Ultra H265 30Mt. Mini IR Bullet İP Kamera

Camera

Sensor

1/2.7", 2.0 megapixel, progressive scan, CMOS

Lens

4.0mm@F1.8

DORI Distance

Lens

Detect(m)

Observe(m)

Recognize(m)

Identify(m)

4.0mm

 66.7

 26.7

 13.3

 6.7

6.0mm

90

36

18

9

Angle of View (H)

86.5°

Angle of View (V)

44.1°

Angle of View (O)

106.4°

Adjustment angle

Pan: 0°~360°

Tilt: 0°~90°

Rotate: 0°~360°

Shutter

Auto/Manual, 1~1/100000 s

Minimum Illumination

Colour: 0.02 Lux (F1.8，AGC ON)

0 Lux with IR on

Digital noise reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

IR Range

Up to 30m (98 ft) IR range

WDR

DWDR

Video

Video Compression

Ultra 265, H.265, H.264

H.264 code profile

Baseline profile, Main Profile

Frame Rate

Main Stream: 1080P (1920*1080): Max. 25 fps;

Sub Stream: 720P (1280*720): Max. 25 fps;

Third Stream: CIF (352*288): Max. 25 fps;

HLC

Supported

BLC

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible Integration

ONVIF(Profile S, Profile T), API

Interface

Network

10/100M Base-TX Ethernet

General

Power

12 V DC±25%, PoE (IEEE 802.3af)

Power consumption: Max 4.5W

Dimensions (L × W × H)

167.3 × 62.9 × 62.7 mm (6.6” × 2.5” × 2.5”)

Weight

0.37kg (0.81lb)

Working Environment

-30°C ~ +60°C (-22°F ~ 140°F), Humidity: 10%~90% RH(non-condensing)

Ingress Protection

IP66

Reset Button

Supported
