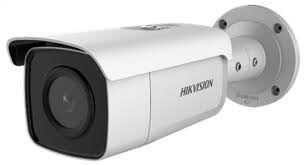

2.0MP 4.0mm Sabit Lens WDR 80Mt. AcuSense IR Bullet İP Kamera
2.0MP 4.0mm Sabit Lens WDR 80Mt. AcuSense IR Bullet İP Kamera
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.002 Lux @ (F1.4, AGC ON) |
|
Wide Dynamic Range |
120 dB |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Day & Night |
ICR Cut |
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Slow Shutter |
Yes |
|
P/N |
P/N |
|
Lens |
|
|
Lens Type & FOV |
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129° |
|
4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102° |
|
|
6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65° |
|
|
Aperture |
F1.4 |
|
Lens Mount |
M12 |
|
Aperture Type |
Fixed |
|
Illuminator |
|
|
IR Range |
2I: Up to 60 m 4I: Up to 80 m |
|
Wavelength |
850 nm |
|
Smart Supplement Light |
Yes |
|
Supplement Light |
IR |
|
Video |
|
|
Max. Resolution |
1920 × 1080 |
|
Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 720) |
|
60Hz: 30fps (1920 × 1080, 1280 × 720) |
|
|
Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
|
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
|
Third Stream |
50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) |
|
60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) |
|
|
Video Compression |
Main stream: H.265/H.264 |
|
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main Stream supports |
|
H.265+ |
Main Stream supports |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
Yes |
|
Region of Interest (ROI) |
1 fixed region for each stream |
|
Network |
|
|
Simultaneous Live View |
Up to 6 channels |
|
API |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP |
|
Smooth Streaming |
Yes |
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
|
Network Storage |
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|
Together with high-end Hikvision memory card, memory card encryption and health |
|
|
detection are supported |
|
|
Client |
iVMS-4200, Hik-Connect, Hik-Central |
|
Web Browser |
Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome57.0+, Firefox52.0+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|
Interface |
|
|
On-board Storage |
Built-in micro SD slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
Intelligent (Traditional Algorithm) |
|
|
Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
|
Intelligent (Deep Learning Algorithm) |
|
|
Face Capture |
Yes |
|
Perimeter Protection |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
|
General |
|
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, reverse polarity protection PoE: 802.3af，class 3 |
|
Power Consumption and Current |
2I: |
|
12 VDC, 0.63 A, max. 7.5 W |
|
|
PoE: (802.3af, 36 V to 57 V) ,0.25 A to 0.16 A, max. 9 W 4I: |
|
|
12 VDC, 0.88 A, max. 10.5 W |
|
|
PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W |
|
|
Power Interface |
Ø5.5 mm coaxial power plug |
|
Material |
Metal except for sunshield |
|
Camera Dimension |
Ø105 × 289.5 mm (4.1" × 11.4") |
|
Package Dimension |
386 × 156 × 155 mm (15.2" × 6.1" × 6.1") |
|
Camera Weight |
Approx. 1090 g (2.4 lb.) |
|
With Package Weight |
Approx. 1614 g (3.6 lb.) |
|
Linkage Method |
Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture |
|
Web Client Language |
33 languages |
|
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
|
General Function |
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
|
Software Reset |
Yes |
|
Approval |
|
|
EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN |
|
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC |
|
|
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
|
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part |
|
1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
|
|
Environment |
CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
|
Protection |
Ingression protection: IP67 (IEC 60529-2013) |
