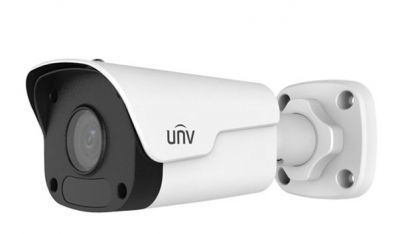

2.0MP 4.0mm Lens 30Mt. IR Dahili Ses, LightHunter IR Bullet İP Kamera

IPC2125SR3-ADUPF40

IPC2125SR3-ADUPF60

Camera

Sensor

1/2.7", 5.0 megapixel, progressive scan, CMOS

Lens

4.0mm@F1.6

6.0mm@F1.6

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4.0

90

36

18

9

6.0

135

54

27

13.5

Angle of View (H)

79.7°

50.5°

Angle of View (V)

51.8°

35.9°

Angle of View (O)

98.1°

62.1°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.005Lux (F1.6, AGC ON)
0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

IR Range

Up to 30m (98ft) IR range

wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream: 5MP (2592*1944), Max 20fps; 5MP (2592*1944), Max 25fps (WDR OFF); 4MP (2560*1440), Max 30fps;
3MP (2048*1536), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

9:16 Corridor Mode

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

Support

HLC

Support

BLC

Support

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile T), API

Client

EZStation
EZView
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Built-in Mic

Supported

Network

1 RJ45 10M/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 6W

Dimensions (L × W × H)

157.3 × 62.4 × 63mm (6.2” × 2.5” × 2.5”)

Net Weight

0.45kg (0.99lb)

Material

Front cover：plastic
Body：metal
Bracket：metal
Bottom plate：meta

Working Environment

-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

surge protection

2KV

Ingress Protection

IP67

Reset Button

Supported
