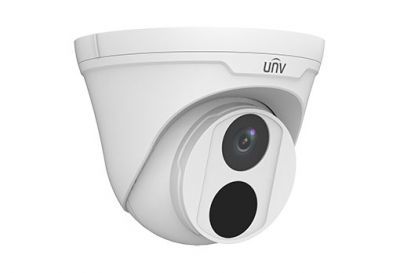

2.0MP 2.8mm Ultra H265 30Mt. IR İP Dome Kamera
2.0MP 2.8mm Ultra H265 30Mt. IR İP Dome Kamera
|
MODEL |
IPC3612LR3-PF28-D |
IPC3612LR3-PF40-D |
|||||
|
Camera |
|
|
|
|
|
|
|
|
Sensor |
1/2.7", 2.0 megapixel, progressive scan, CMOS |
||||||
|
Lens |
2.8mm@F2.0 |
|
|
4.0mm@F2.0 |
|
|
|
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
|
Recognize (m) |
|
Identify (m) |
|
|
2.8 |
46.7 |
18.8 |
|
9.3 |
|
4.7 |
|
|
4.0 |
66.7 |
26.7 |
|
13.3 |
|
6.7 |
|
Angle of view (H) |
112.7° |
|
|
86.5° |
|
|
|
|
Angle of View (V) |
60.1° |
|
|
44.1° |
|
|
|
|
Angle of View (O) |
146.5° |
|
|
106.4° |
|
|
|
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
|
|
|
|
|
|
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 80° |
Rotate: 0° ~ 360° |
||||
|
Min. Illumination |
Colour: 0.02Lux (F2.0, AGC ON) |
|
|
|
|
|
|
|
|
0Lux with IR |
|
|
|
|
|
|
|
IR Range |
Up to 30m (98ft) IR range |
|
|
|
|
|
|
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
|
|
|
|
|
|
S/N |
>52dB |
|
|
|
|
|
|
|
WDR |
Supported |
|
|
|
|
|
|
|
Noise Reduction |
2D/3D |
|
|
|
|
|
|
|
Video |
|
|
|
|
|
|
|
|
Max. Resolution |
1920*1080 |
|
|
|
|
|
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
|
|
|
|
|
|
H.264 code profile |
Baseline profile, Main Profile |
|
|
|
|
|
|
|
Frame Rate |
Main Stream: 1080P (1920*1080), Max 30fps; |
|
|
|
|
|
|
|
|
Sub Stream: 720P (1280*720), Max 30fps; |
|
|
|
|
|
|
|
|
Third Stream: CIF (352*288), Max 30fps |
|
|
|
|
|
|
|
HLC |
Supported |
|
|
|
|
|
|
|
BLC |
Supported |
|
|
|
|
|
|
|
OSD |
Up to 4 OSDs |
|
|
|
|
|
|
|
Privacy Mask |
Up to 8 areas |
|
|
|
|
|
|
|
ROI |
Up to 2 areas |
|
|
|
|
|
|
|
Motion Detection |
Up to 4 areas |
|
|
|
|
|
|
|
Smart |
|
|
|
|
|
|
|
|
Behavior Detection |
Intrusion, Motion detection,Tampering alarm |
|
|
|
|
|
|
|
Intrusion |
Enter and loiter in a pre-defined virtual region |
|
|
|
|
|
|
|
Network |
|
|
|
|
|
|
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
|
|
|
|
|
|
|
Compatible Integration |
ONVIF (Profile S, Profile T),API |
|
|
|
|
|
|
|
Interface |
|
|
|
|
|
|
|
|
Network |
10/100M Base-TX Ethernet |
||||||
|
General |
|
|
|
|
|
|
|
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
||||||
|
Power consumption: Max 4.5W |
|||||||
|
Dimensions (Ø x H) |
Φ118 x 96mm (Φ4.6” x 3.8”) |
||||||
|
Weight |
0.2kg (0.44lb) |
||||||
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||
|
Ingress Protection |
IP67 |
||||||
