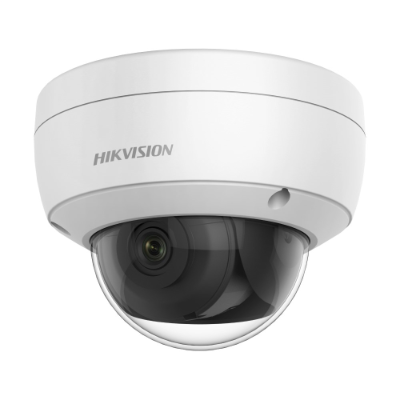

2.0MP 2.8mm Lens H.265+ WDR, IK10, W.Proof 30Mt. AcuSense IR Dome İP Kamera

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Wide Dynamic Range

120 dB

Min. Illumination

Color: 0.002 Lux @ (F1.4, AGC ON)

Day & Night

ICR Cut

Shutter Speed

1/3 s to 1/100,000 s

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Slow Shutter

Yes

P/N

P/N

Lens

Lens Type & FOV

2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°

4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°

6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65°

Aperture

F1.4

Lens Mount

M12

Aperture Type

Fixed

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Smart Supplement Light

Yes

Supplement Light

IR

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)

60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main Stream supports

H.265+

Main Stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for each stream

Audio

Environment Noise Filtering

-S: Yes

Audio Sampling Rate

-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3

Audio Bit Rate

-S:

64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/

8-320Kbps(MP3)

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP

Smooth Streaming

Yes

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF

Network Storage

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health

detection are supported

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Alarm

-S: 1 alarm input, 1 alarm output (max. 12 VDC @30 mA)

Built-in Microphone

-U: Yes

Audio

-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type: non-equilibrium

On-board Storage

Built-in micro SD slot, up to 256 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Intelligent (Traditional Algorithm)

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection

Intelligent (Deep Learning Algorithm)

Face Capture

Yes

Perimeter Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection PoE: 802.3af, class 3

Power Consumption and Current

12 VDC, 0.4 A, max. 4.8 W

PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6 W

Power Interface

Ø5.5 mm coaxial power plug

Material

Metal upper cover and base

Camera Dimension

Ø121 × 92 mm (4.8" × 3.6")

Package Dimension

150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

Camera Weight

Approx. 585 g (1.3 lb.)

With Package Weight

Approx. 836 g (1.8 lb.)

Linkage Method

Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audible warning

Web Client Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Software Reset

Yes

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN

61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC

(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part

1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

Ingression protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
