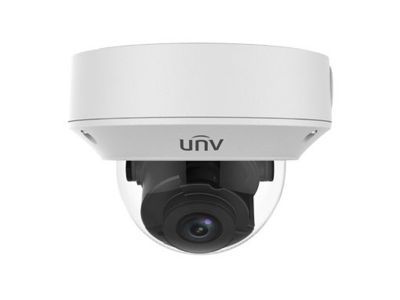

2.0MP 2.8~12mm Motorize Lens 30Mt. IR IP Dome Kamera

 IPC3232LR3-VSP-D

IPC3232LR3-VSPZ28-D

Camera

Sensor

1/2.7", 2.0 megapixel, progressive scan, CMOS

Lens

2.8 ~ 12mm, manual zoom lens

2.8 ~ 12mm, motorized zoom lens

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

42

16.8

8.4

4.2

12

180

72

36

18

Angle of View (H)

116.5° ~ 31.1°

Angle of View (V)

58.8° ~ 17.3°

Angle of View (O)

151.5° ~ 38.2°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 80°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.01Lux (F1.6, AGC ON)
0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

DWDR

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (704*576), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°

Dewarping

Supported

HLC

Supported

BLC

Supported

Storage

Edge Storage

MicroSD, up to 256GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation
EZView
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Network

10M/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 6.5W

Dimensions (Ø x H)

Φ148 x 111.3mm (Ø5.8” x 4.4”)

Net Weight

0.92kg (2.0lb)

Material

Shield：PC
Bottom plate：metal

Working Environment

-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Ingress Protection

IP67

Vandal Resistant

IK10

Reset Button

Supported
