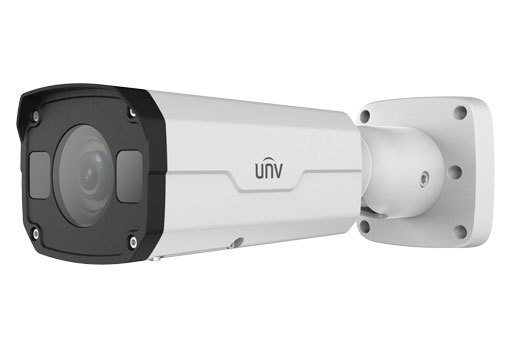

2.0MP 2.8~12mm Motorize Lens 30Mt. IR IP Bullet Kamera
2.0MP 2.8~12mm Motorize Lens 30Mt. IR IP Bullet Kamera
|
|
IPC2322LBR3-SP-D |
IPC2322LBR3-SPZ28-D |
||||||
|
Camera |
||||||||
|
Sensor |
1/2.7", 2.0 megapixel, progressive scan, CMOS |
|||||||
|
Lens |
2.8 ~ 12mm, manual zoom lens |
2.8 ~ 12mm, motorized zoom lens |
||||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|||
|
2.8 |
42 |
16.8 |
8.4 |
4.2 |
||||
|
12 |
180 |
72 |
36 |
18 |
||||
|
Angle of View (H) |
112.7° ~ 28.1° |
|||||||
|
Angle of View (V) |
60.1° ~ 15.4° |
|||||||
|
Angle of View (O) |
146.5° ~ 33.2° |
|||||||
|
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
Rotate: 0° ~ 360° |
|||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||||||
|
Minimum Illumination |
Colour: 0.01Lux (F1.6, AGC ON) |
|||||||
|
Digital noise reduction |
2D/3D DNR |
|||||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|||||||
|
S/N |
>52dB |
|||||||
|
IR Range |
Up to 30m (98ft) IR range |
|||||||
|
Wavelength |
850nm |
|||||||
|
IR On/Off Control |
Auto/Manual |
|||||||
|
Defog |
Digital Defog |
|||||||
|
WDR |
DWDR |
|||||||
|
Video |
||||||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||||||
|
H.264 code profile |
Baseline profile, Main Profile |
|||||||
|
Frame Rate |
Main Stream: 1080P (1920*1080), Max 30fps; |
|||||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
|||||||
|
OSD |
Up to 4 OSDs |
|||||||
|
Privacy Mask |
Up to 4 areas |
|||||||
|
ROI |
Up to 2 areas |
|||||||
|
Motion Detection |
Up to 4 areas |
|||||||
|
Image |
||||||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|||||||
|
Digital noise reduction |
2D/3D DNR |
|||||||
|
Smart IR |
Support |
|||||||
|
Flip |
Normal/Vertical/Horizontal/180° |
|||||||
|
Dewarping |
Supported |
|||||||
|
HLC |
Supported |
|||||||
|
BLC |
Supported |
|||||||
|
Network |
||||||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
|||||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
|||||||
|
Client |
EZStation |
|||||||
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
|||||||
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
||||||||
|
Storage |
||||||||
|
Edge Storage |
Micro SD, up to 256GB |
|||||||
|
Network Storage |
ANR |
|||||||
|
Interface |
||||||||
|
Network |
1 RJ45 100M Base-TX Ethernet |
|||||||
|
Certifications |
||||||||
|
Certifications |
CE: EN 60950-1 |
|||||||
|
General |
||||||||
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|||||||
|
Power consumption: Max 6.5W |
||||||||
|
Dimensions (L × W × H) |
240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”) |
|||||||
|
Net Weight |
1kg (2.2lb) |
|||||||
|
Gross Weight |
|
|||||||
|
Material |
Metal |
|||||||
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||||||
|
Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||||||
|
Surge Protection |
6KV |
|||||||
|
Ingress Protection |
IP67 |
|||||||
