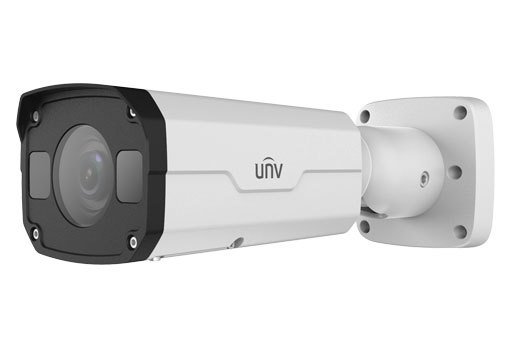

2.0MP 2.7~13.5mm Motorize Lens 50Mt. IR LightHunter IP Bullet Kamera
2.0MP 2.7~13.5mm Motorize Lens 50Mt. IR LightHunter IP Bullet Kamera
|
Camera |
|||||||
|
Sensor |
1/2.8", 2.0megapixel, progressive scan, CMOS |
||||||
|
Lens |
2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens |
||||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
||
|
2.7 |
41.9 |
16.7 |
8.4 |
4.2 |
|||
|
13.5 |
209.5 |
83.8 |
41.9 |
20.9 |
|||
|
Angle of View (H) |
121.36° ~ 33.51° |
||||||
|
Angle of View (V) |
58.4° ~ 14.9° |
||||||
|
Angle of View (O) |
139.9° ~ 33.4° |
||||||
|
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
Rotate: 0° ~ 360° |
||||
|
Shutter |
Auto/Manual, shutter time: 1 ~ 1/100000s |
||||||
|
Minimum Illumination |
Colour: 0.0005Lux (F1.2, AGC ON) |
||||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||||
|
S/N |
>52 dB |
||||||
|
IR Range |
Up to 50m (164ft) IR range |
||||||
|
wavelength |
850nm |
||||||
|
IR On/Off Control |
Auto/Manual |
||||||
|
Defog |
Digital Defog |
||||||
|
WDR |
120dB |
||||||
|
Video |
|||||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||||
|
H.264 code profile |
Baseline profile, Main Profile, High Profile |
||||||
|
Frame Rate |
Main Stream: 2MP (1920*1080), Max 60fps; |
||||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
||||||
|
9:16 Corridor Mode |
Supported |
||||||
|
OSD |
Up to 8 OSDs |
||||||
|
Privacy Mask |
Up to 8 areas |
||||||
|
ROI |
Up to 8 areas |
||||||
|
Motion Detection |
Up to 4 areas |
||||||
|
Image |
|||||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||||
|
Digital noise reduction |
2D/3D DNR |
||||||
|
Smart IR |
Support |
||||||
|
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
||||||
|
Dewarping |
Support |
||||||
|
HLC |
Support |
||||||
|
BLC |
Support |
||||||
|
Audio |
|||||||
|
Audio Compression |
G.711 |
||||||
|
Two-way audio |
Supported |
||||||
|
Suppression |
Supported |
||||||
|
Sampling Rate |
8KHZ |
||||||
|
Storage |
|||||||
|
Edge Storage |
Micro SD, up to 256GB |
||||||
|
Network Storage |
ANR, NAS(NFS) |
||||||
|
Network |
|||||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
||||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
||||||
|
Client |
EZStation |
||||||
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
||||||
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|||||||
|
Interface |
|||||||
|
Audio I/O |
Input: impedance 35kΩ; amplitude 1V [p-p] |
||||||
|
Output: impedance 600Ω; amplitude 1V [p-p] |
|||||||
|
Alarm I/O |
1/1 |
||||||
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
||||||
|
Video Output |
1 BNC, impedance 75Ω; amplitude 1V [p-p] |
||||||
|
Certifications |
|||||||
|
Certifications |
CE: EN 60950-1 |
||||||
|
General |
|||||||
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
||||||
|
Power consumption: Max 10W |
|||||||
|
Dimensions (L × W × H) |
253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) |
||||||
|
Net Weight |
1.0kg (2.2lb) |
||||||
|
Material |
Front cover：metal |
||||||
|
Working Environment |
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||
|
Strorage Environment |
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||
|
surge protection |
6KV |
||||||
|
Ingress Protection |
IP67 |
||||||
